[SHIMANO] Genuine Spare Parts for 26 CALCUTTA CONQUEST DC 201XG LEFT Product code: 048769 **Back-order (Shipping in 3-4 weeks after receiving order)

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.95 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/product/10006

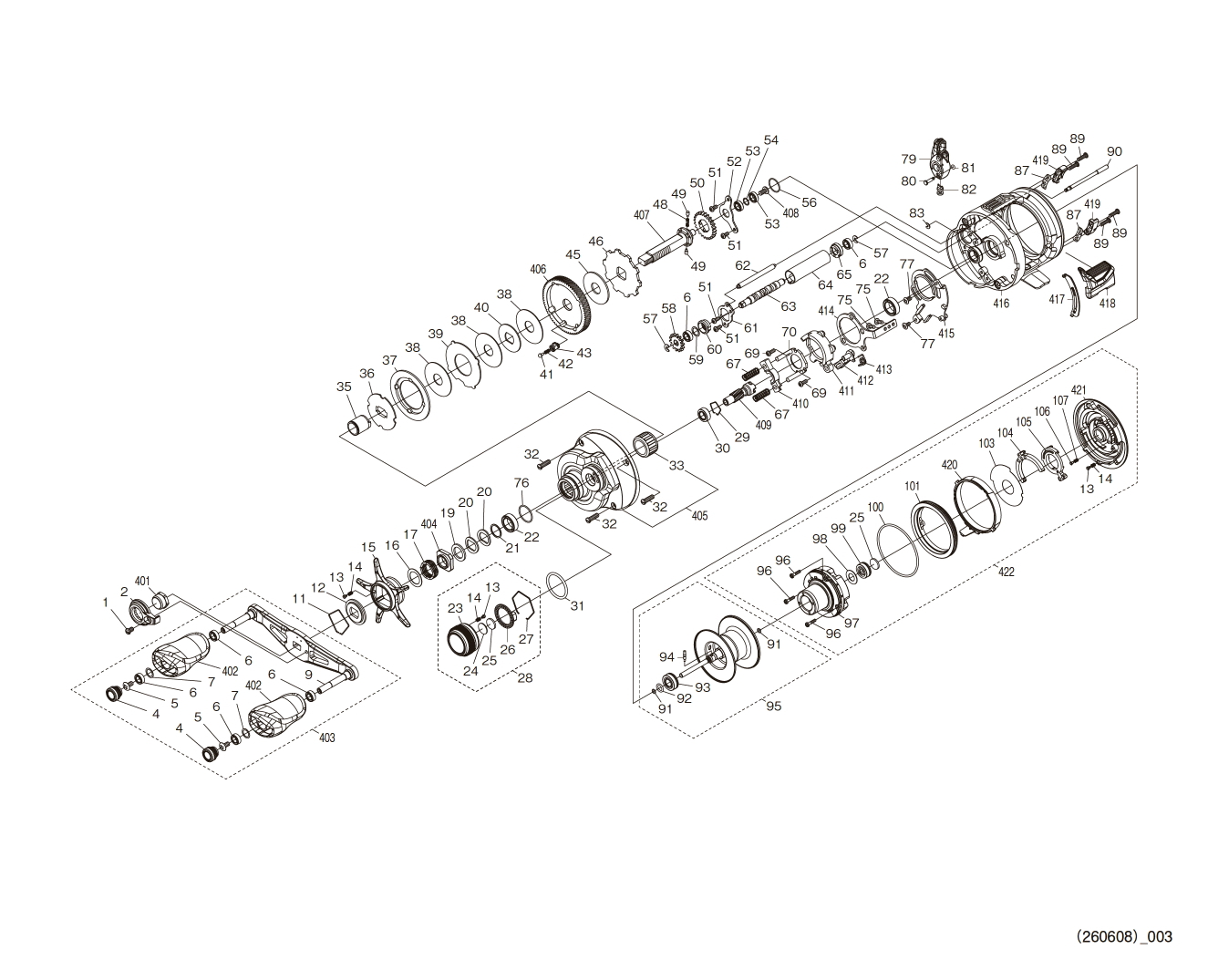

Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "33 / ROLLER CLUTCH", "94 /SPOOL CLUTCH PIN" and "93 /BALL BEARING", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10CZ5	SET SCREW	2.75
2	10S80	RETAINER	3.85
4	14861	HANDLE CAP	6.60
5	103E9	SET SCREW	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
9	14DFX	HANDLE SHANK ASSEMBLY	49.50
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	100VT	STAR DRAG	22.55
16	148TG	WASHER	1.10
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8X12X3.5)	13.75
23	148ZC	MECHANICAL BRAKE KNOB	22.00
24	10896	MECHANICAL BRAKE WASHER	1.10
25	1057S	SPOOL SHAFT STOP (B)	1.10
26	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
27	10L6X	MECHANICAL BRAKE KNOB CLICK HOLDER	2.75
28	14EFN	MECHANICAL BRAKE KNOB ASSEMBLY	35.20
29	1057X	RETAINING CLIP	1.65
30	105BP	BALL BEARING (5X9X3)	13.75
31	108W8	O-RING S-16	1.65
32	10C3N	SET SCREW	2.75
33	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
35	10BN3	ROLLER CLUTCH INNER TUBE	6.05
36	13UTZ	STAR DRAG PLATE	3.85
37	13VC1	DRAG CLICK RATCHET	1.65
38	10CHW	STAR DRAG WASHER	6.05
39	10KQL	STAR DRAG WASHER	1.65
40	13V7Q	STAR DRAG WASHER	1.65
41	10C0S	DRAG CLICK PIN	2.75
42	10J89	DRAG CLICK SPRING	1.65
43	13VG9	DRAG SPRING HOLDER	1.65
45	10CHZ	STAR DRAG WASHER	2.75
46	10D6Y	STOPPER GEAR	6.05
48	10JDX	SPRING FOR WORM SHAFT GEAR	1.65
49	10HJG	PIN FOR WORM SHAFT GEAR	1.65
50	10J6W	WORM SHAFT GEAR	3.85
51	10LVF	SET SCREW	1.10
52	100GK	DRIVE GEAR SHAFT RETAINING PLATE	1.10
53	10SAM	BALL BEARING (4X7X2)	13.75
54	143KE	WASHER	1.10
56	10SZ4	O-RING	1.65
57	105NC	E-TYPE RETAINING RING (2)	1.10
58	10FNX	WORM SHAFT GEAR	2.75
59	10G8G	WASHER	1.10
60	10N9Q	WORM SHAFT MOUNT (A)	1.65
61	10T7S	WORM SHAFT RETAINER	1.10
62	14AG2	LEVEL WIND GUIDE	3.85
63	101QC	WORM SHAFT	5.50
64	14AG1	LEVEL WIND PIPE	14.30
65	104SP	WORM SHAFT MOUNT (B)	1.65
67	104BE	CLUTCH YOKE SPRING	1.10
69	101CN	SET SCREW	1.65
70	10F42	CLUTCH CAM SUPPORT PLATE	3.85
75	10559	SET SCREW	1.65
76	1027V	O-RING	1.65
77	100BD	SET SCREW	1.65
79	10TED	LEVEL WIND ASSEMBLY	51.70
80	100GC	WORM SHAFT PIN RETAINER	1.10
81	10908	O-RING	1.65
82	100GJ	WORM SHAFT PIN	4.40
83	105NB	E-TYPE RETAINING RING 1.5	1.10
87	1421W	WASHER	1.10
89	14BQ2	SET SCREW	1.10
90	14AG0	LINE GUARD	4.95
91	10E7H	O-RING	1.10
92	10TNF	O-RING	1.65
93	1005D	BALL BEARING (5X11X4) *Cannot be ordered	13.75
94	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
95	14DG1	SPOOL ASSEMBLY	143.00
96	148ZP	SET SCREW	1.10
97	14AFX	DC ASSEMBLY	148.50
98	10B94	BEARING SEAL	1.65
99	10S37	BALL BEARING (3X10X4)	13.75
100	10E9G	O-RING	2.75
101	14AFV	FRAME B MOUNT	37.40
103	1485C	MAIN UNIT B NAMEPLATE	1.10
104	14D81	BR KNOB ASSEMBLY	16.50
105	14D82	DC DIAL ASSEMBLY	16.50
106	144NT	CLICK PIN	1.10
107	10T6Z	CLICK SPRING	1.10
401	101DW	HANDLE SET SCREW	6.05
402	101EW	HANDLE KNOB	11.00
403	14DG7	HANDLE ASSEMBLY	132.00
404	10A0C	STAR DRAG LOCK NUT	2.75
405	14DG8	MAIN BODY A ASSEMBLY	147.40
406	13UYC	DRIVE GEAR	28.05
407	14B0D	DRIVE GEAR SHAFT	15.40
408	10DR5	SET SCREW	1.10
409	13SQA	PINION GEAR	22.00
410	1046U	CLUTCH YOKE	1.65
411	10SKS	CLUTCH CAM	2.75
412	105ZV	CLUTCH PAWL	3.85
413	14026	CLUTCH PAWL SPRING	1.65
414	101ES	CLUTCH PLATE	2.20
415	101QF	MAIN BODY A SEAT	1.10
416	14DG9	FRAME ASSEMBLY	286.00
417	101ER	CLUTCH LEVER MOUNT	1.10
418	10282	CLUTCH LEVER ASSEMBLY	7.70
419	14AGB	FRAME B MOUNT CAM	2.20
420	14AGA	MAIN BODY B CAM LEVER	2.20
421	14AG9	MAIN BODY B	111.65
422	14DGA	MAIN BODY B ASSEMBLY	374.00
*F01	14B04	REEL BAG	11.00
